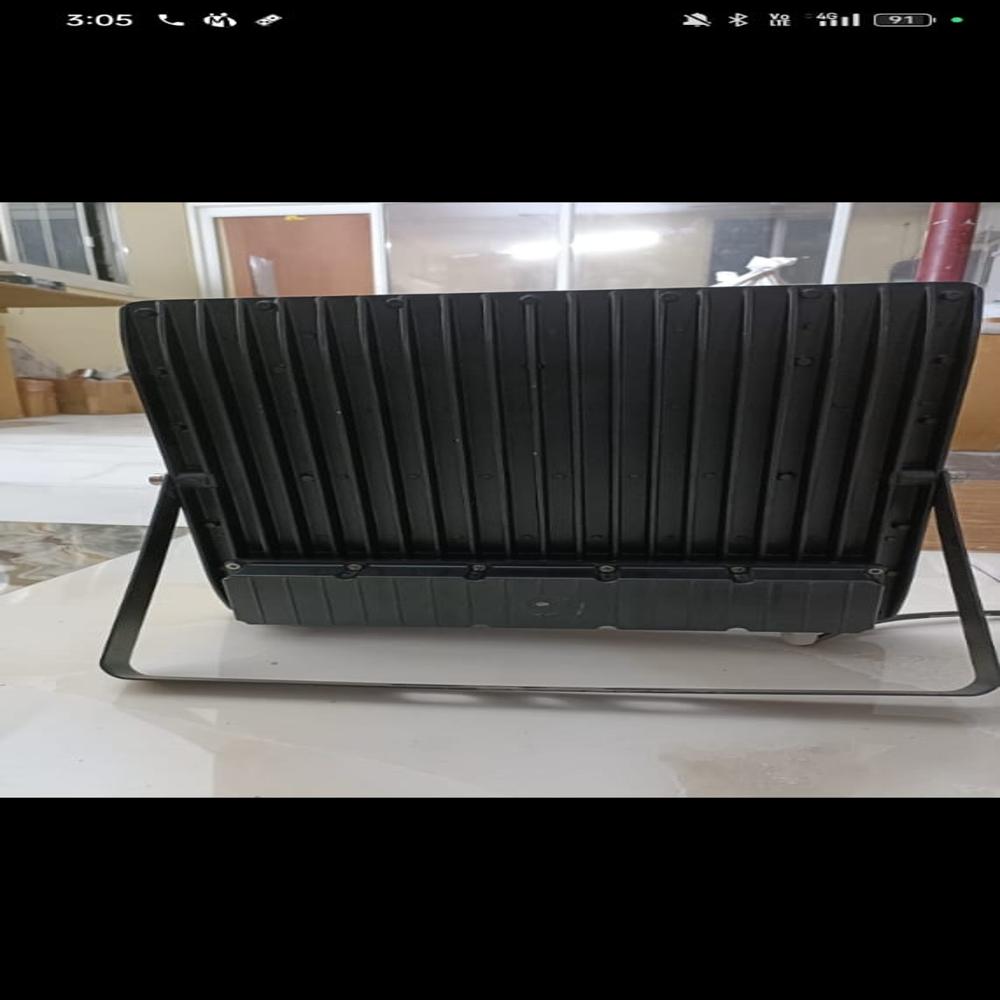

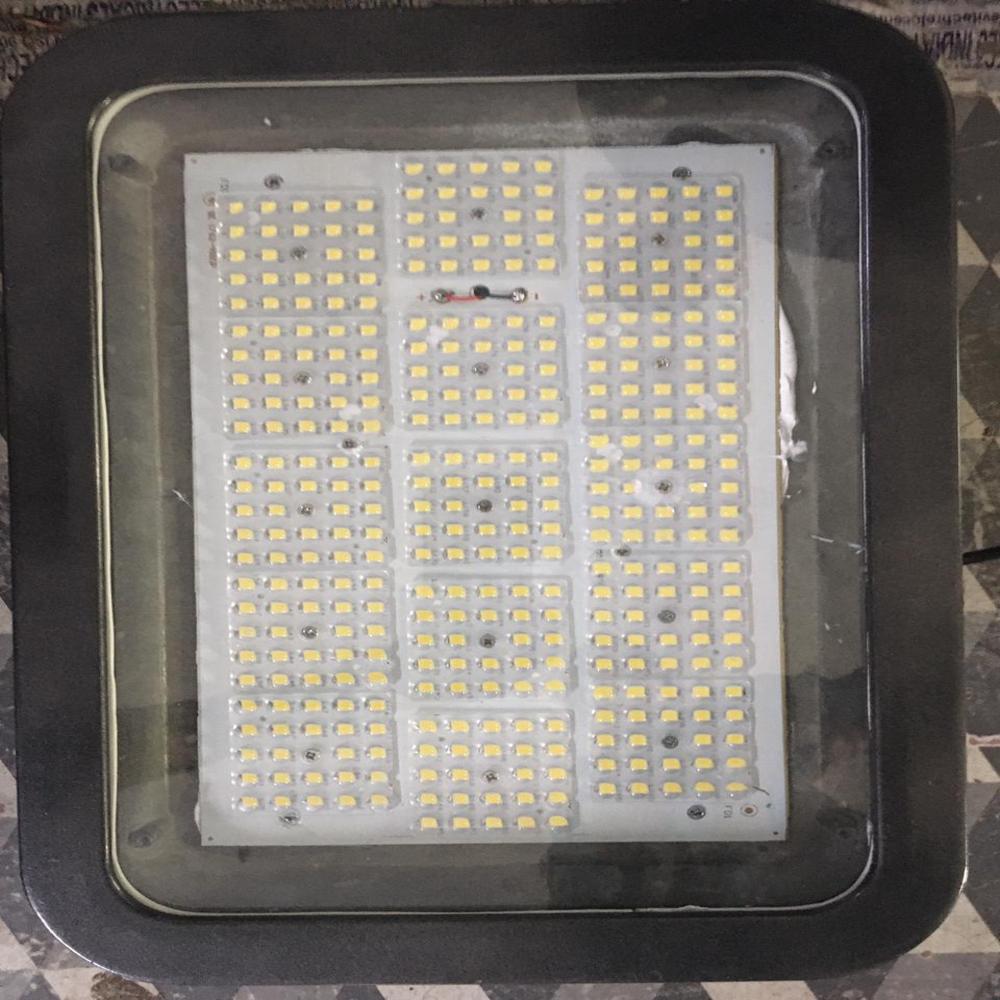

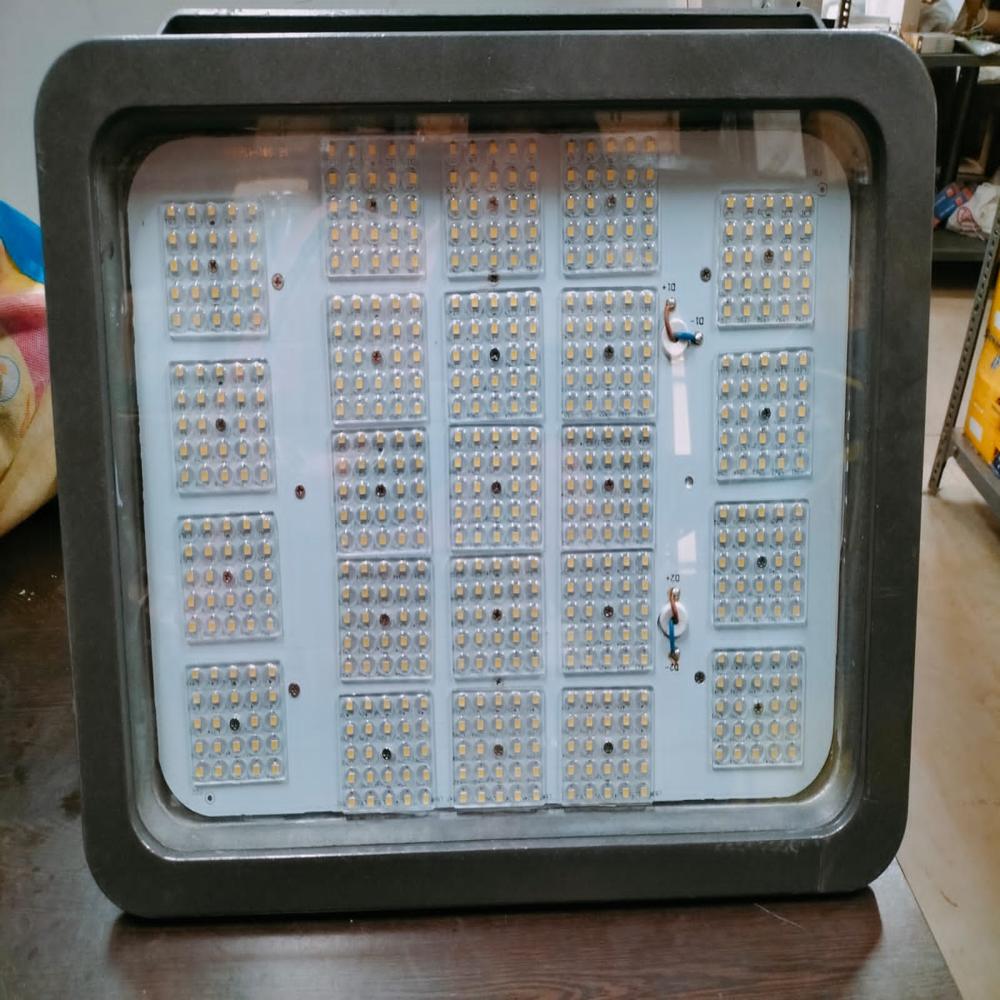

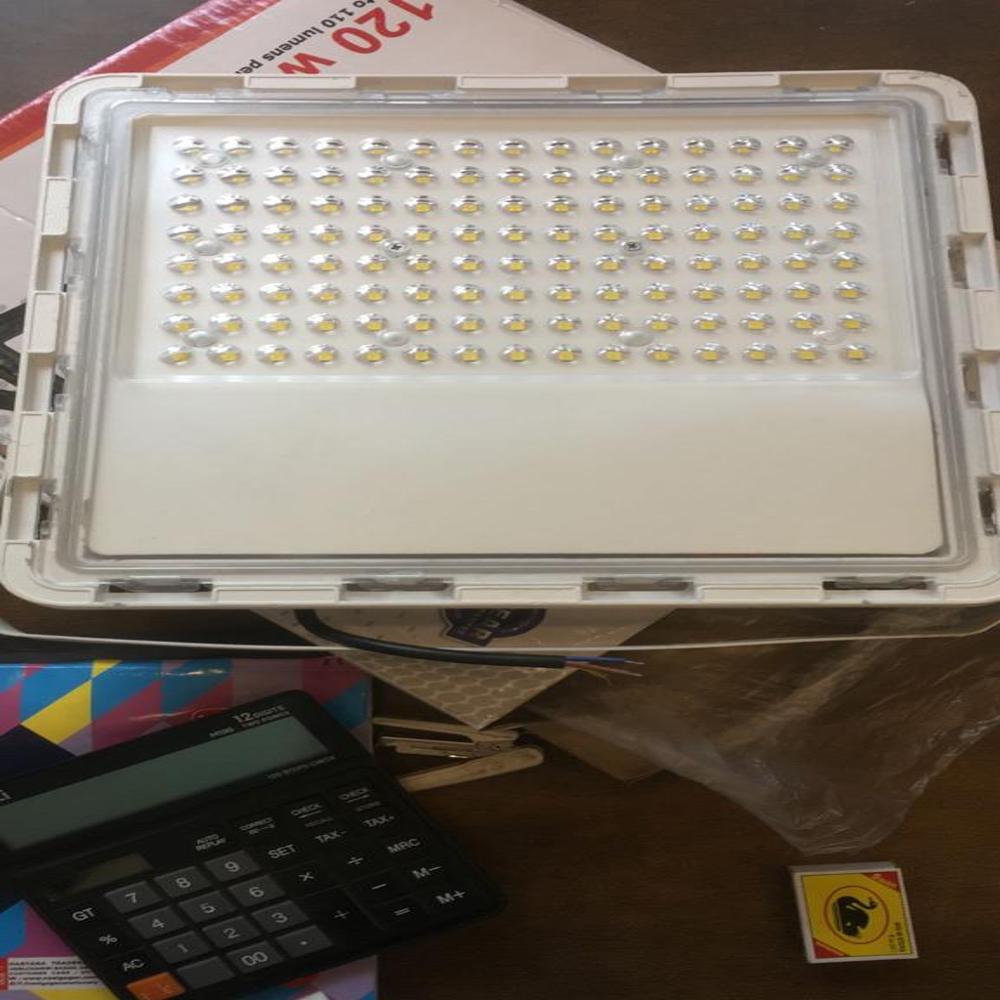

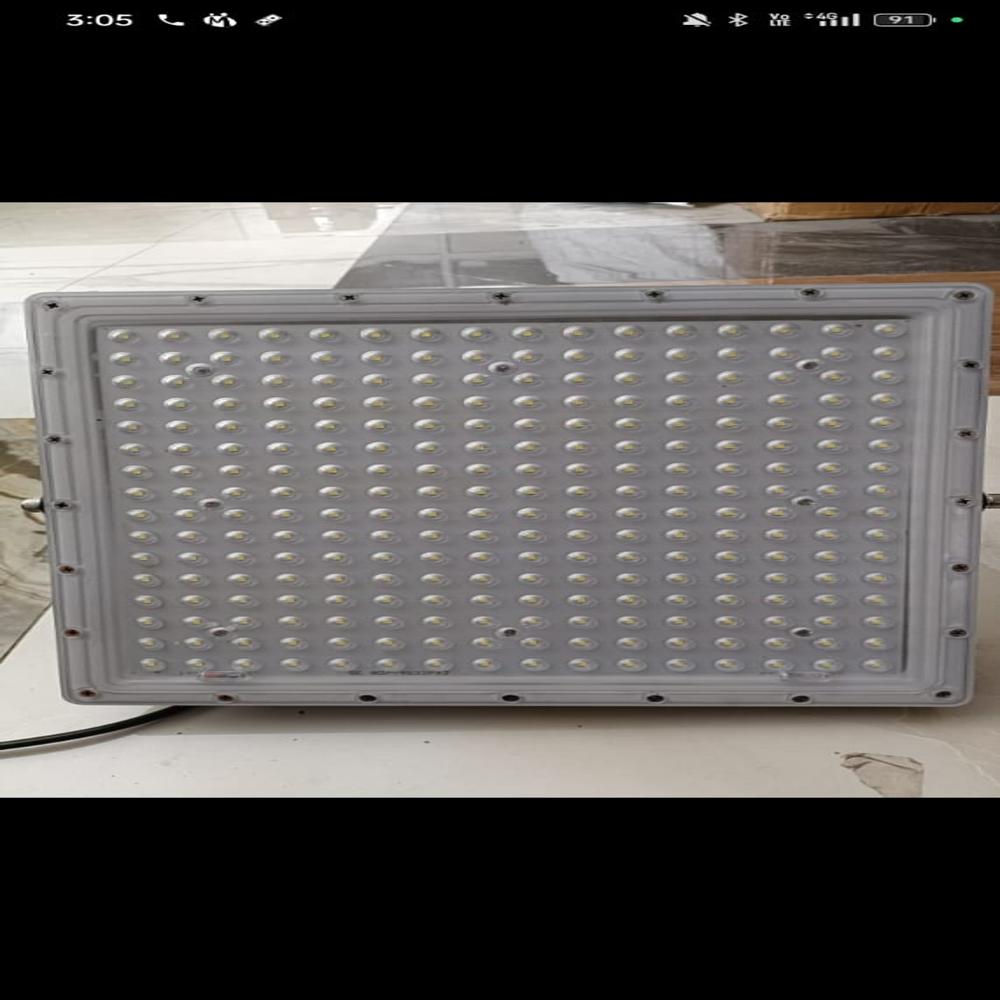

Flood Light

About Flood Light

1 Input Voltage 110V to 270V, cut off below 110VAC and above 270VAC with auto restart 2 LED Efficacy >130 lumens/watt 3 Power Factor >0.95 4 LED Make Nichia, Cree, Bridgelux, Osram, Philips, Edison, Citizen 5 Life Expecting 50,000 burning hours 6 No of Hours Usage / Day 10 to 12 hours/day 7 Rated Watt 250W (cool white) 8 Luminous Flux of Luminarie / System Lumen Efficacy >110 lumens/watt 9 LD Type SMD (Surface Mounted Device) 10 Working Humidity 10% to 90% 11 Colour Temperature 5,700 to 6,500K with test certificate 12 Ingress and Mechanical Impact Protection IP 66 as per IS/IEC60529-2001 and IK 06, with test certificate 13 Total Harmonic Distortion (THD) <10% with test certificate 14 Colour Rendering Index Ra > 70 15 Working Temperature -10OC to 50OC 16 Luminaire Beam Angle 60 OC to 90 OC 17 Control Circuit Compatible to LED 18 Lamp Starting Time Not more than 5 Sec. 19 Energy Consumption Not more than 1.1 times at rated voltage 20 LED Driver Efficiency >85% in all cases 21 Luminary Housing Pressure die cast Aluminum with heat resistive toughened glass cover and water proof Fixture, shall have two separate compartments for LED and Driver properly sealed to achieve IP66 ingress protection. 22 LED Thermal Management LED shall be mounted on heat sink conductive aluminum with fins to dissipate the heat to ambient air, optical lens shall be made up of PMMA of polycarbonate & shall have temperature withstand capacity >85OC centigrade. 23 Driver Constant current, constant voltage, constant current constant voltage, output, active power factor correction. OV, OC, SC & frequency variation protection, internal surge protection of minimum 4KV, Safety Extra Low Voltage (SELV) protection less than 60 V DC, Potted driver
